Slimline JAE CDROM DVD to IDE Adapter

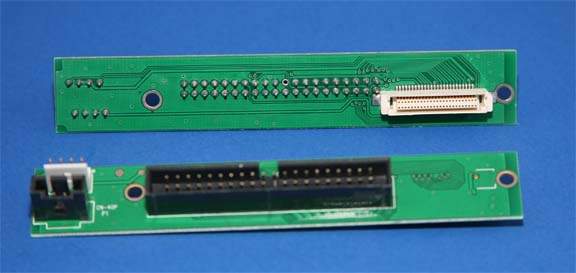

The slimline CD to Desktop IDE Adapter is an adapter used for converting a notebook CD-Rom drive, CDRW or DVD drive with a JAE 50-pin connector to a desktop enhanced IDE 40-pin connector. Analog Audio Connectors are available for sound using the standard MPC Interface. A standard 3.5 inch Power connector is provided.

Your SlimLine CDROM or DVD Drive must have a 50 Pin JAE Connectors.
Some devices that work with this adapter.
# LG Goldstar CRN-8241B
# Matsushita/Panasonic CR-175, 176, UJDA 110
# Mitsumi SR242S, SR200S, SR244WI
# NEC CDR-2800C
# Panasonic DVD SR8174, SR 8171, SR-8183, UJDA510
# Samsung SN-124, SCR-2438
# Torisan DRD-U824, DRD-U624, DRD-U424
# Toshiba XM1502B, XM1602B, XM1702B, XM1802B, XM1902B, XM7002B.
# Toshiba SD-R2212, SD-R2102
# Toshiba SD-C2002, SD-C2102, SD-C2202, SD-C2302, SD-C2402, SD-C2502, SD-C2512, SDC2612
The slimline CD to Desktop IDE Adapter is an adapter used for converting a notebook CD-Rom or DVD drive with a 50-pin connector to a desktop enhanced IDE 40-pin connector.
Power is supplied through a 3.5" 4 pin mini connector.
Two analog audio connectors use the standard 4-pin connection.
Compatible with most sound cards.
Compatible with:
Slimline CD-Rom Drive to IDE Adapter - FLT-3145
