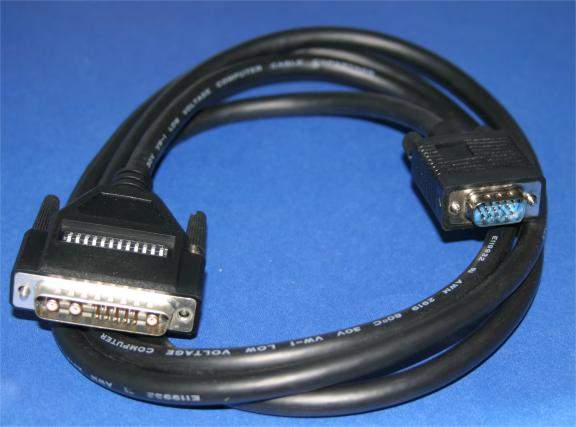

13W3-M to VGA HD15-M 6FT Universal Monitor Cable

Cable has 13w3 Male connector on One side and High Density 15 Male Connector on other.
Cable Length 6'.
This Cable has switch setting to setup for assorted types.
and Mode ID Bits.
Sun Workstation Settings
IBM Power PC Settings
SGI Computer Composite Sync
SGI HV SYNC Out
SGI SYNC On Green OUT
Used to connect some high end monitors to video Cards.
Used to Connect high end Sun/SGI/IBM Power PC Systems to Multisync Monitors.

---

Dip Switch Settings.

Computer Type	SW 1	SW 2	SW 3	SW 4	SW 5	SW 6	SW 7	SW 8	SW 9	SW 10	SW 11	SW 12
			Sense 2			Sense 1	Sense 0	GND		SYNC
Sun Workstation	OFF	OFF	ON OFF	OFF	OFF	ON OFF	ON OFF	ON	OFF	ON	OFF	OFF
	ID BIT 2	ID BIT 3	SELF TEST	ID BIT 0	ID BIT 1		VERT. SYNC			HOR. SYNC
IBM Power PC	OFF	OFF	OFF	OFF	OFF	OFF	ON	ON	OFF	ON	OFF	OFF
	MON TYPE 3	MON TYPE 0	HOR. SYNC	MON TYPE 1	MON TYPE 2	GND	GND		HOR. SYNC		VERT. SYNC	COMP. SYNC
SGI COMP. SYNC OUT	ON OFF	ON OFF	OFF	ON OFF	ON OFF	ON	OFF	OFF	OFF	OFF	OFF	ON
SGI HV. SYNC OUT	ON OFF	ON OFF	OFF	ON OFF	ON OFF	ON	OFF	OFF	ON	OFF	ON	OFF
SGI SYNC ON GREEN OUT	ON OFF	ON OFF	OFF	ON OFF	ON OFF	ON	OFF	OFF	OFF	OFF	OFF	OFF
