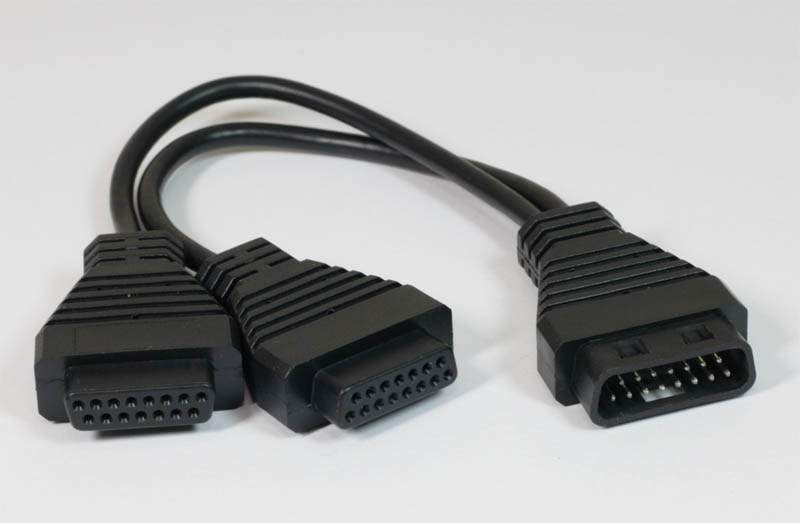

JOYSTICK DB15 Splitter Y

04002
Joystick cable splitting allowing the port to have to joystick devices hooked to it these are usually specified joystick [A] and [B]. This unit is Designed for Combination Flight stick and Foot Pedals.
PCJoy AJoy B
+5 VDC11-
Button 122-
Joystick 1-X33-
Ground444
Ground555
Joystick 1-Y66-
Button 277-
+5 VDC88-
+5 VDC991
Button 410102
Joystick 2-X11113
Ground1212-
Joystick 2-Y13136
Button 314147
+5 VDC15158
Plugs into GAMEPORT Card

Joystick - A Port

Foot Pedals - B Port


NOTE ADDED 04/21/2021 - Thanks Nick. Some of the New Joystick Cards PCI Only Support 1-Joystick.
Older SoundBlaster Cards. Supported Two Joysticks.
Part # 04002
