Dual 9 Pin Motherboard Header Quad 4 USB 2.0 Female Port Cable Rear Slot Bracket

70497

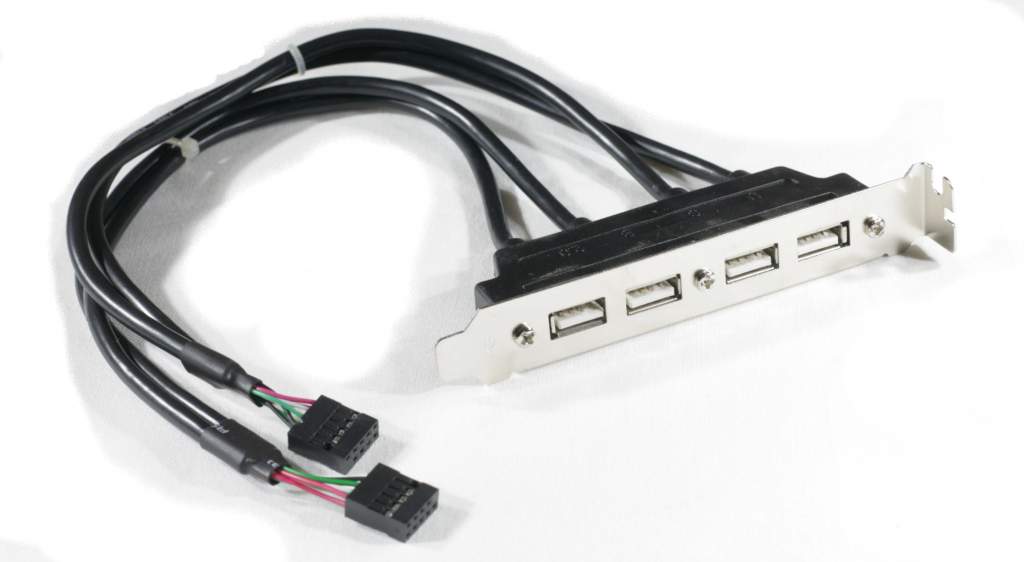

Cable is Black as Pictured.
This is a USB motherboard cable to external 4 ports USB bracket. It is a cable to connect to motherboards to use 4 ports external USB ports. The 4 Port USB 2.0 Motherboard Cable is simple to install.

Description:

  • This Motherboard Cable to External 4 Port USB Bracket.
  • This Motherboard USB Bracket connects USB from motherboard connector to an external backplane on back of computer.
  • Add 4 external USB ports to your computer.
  • Easy installation
  • MainBoard USB Bracket is compatible with motherboards that have a USB header.
  • Weight: 83g

Quad Port USB (Universal Serial Bus) 12 Inch

Cables and Backplate from motherboard to back of case.
Allowing External connection of USB 4 (four) TYPE A connectors.
Two sets of 10 pin row connectors to connect to main board.

Each Double Port can be connected to only one 2x5
Note Pin 10 is Blocked.
Image below would be view on the Board
USB
Pins 1-5 are USB-1
Pins 6-9 are USB-2
and on Second Connector
Pins 1-5 are USB-3
Pins 6-9 are USB-4

Cable Pin Out
USB Port-1
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground

USB Port-2
Pin	Color	What is Does
6	Red	+5 Volt
7	White	Port 0 Data-
8	Green 	Port 0 Data+
9	Black	Power Ground
10      BLOCKED PIN
USB Port-3
Pin	Color	What is Does
1	Red	+5 Volt
2	White	Port 0 Data-
3	Green 	Port 0 Data+
4	Black	Power Ground
5	Black	Ground
USB Port-4
Pin	Color	What is Does
6	Red	+5 Volt
7	White	Port 0 Data-
8	Green 	Port 0 Data+
9	Black	Power Ground
10      BLOCKED PIN
Easiest Way to install these is to check for the 5Volt + Red Wires
Compatible Wires: COMLINK 170-2876
Part # 70497
$5.50
Quantity
In Stock

QTY DISCOUNT PRICING
1-910-99100-999
$5.50$5.25$5.00
UPC:820799704978
