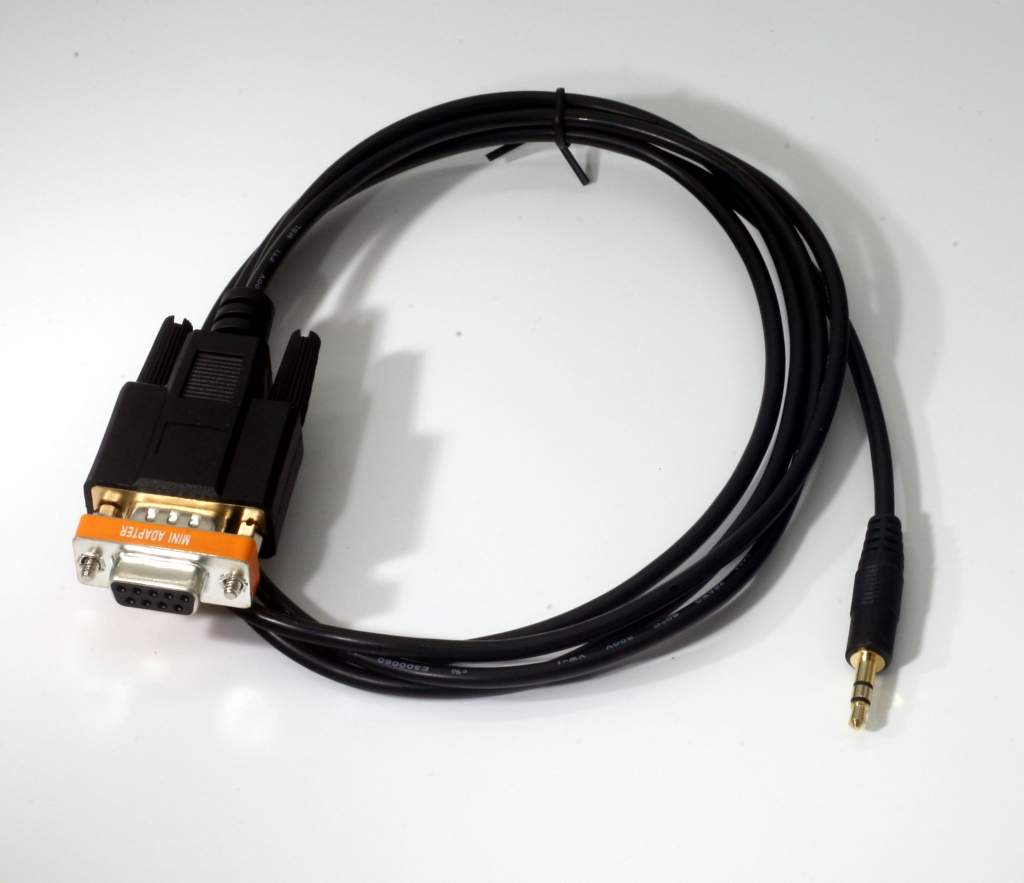

Serial Cable DB9F to 3.5mm DCS4 TAKE CONTROL 4 Null Adapter Kit

87070

6 Foot DB9-Female to 3.5mm TRS Connector Male

Generic Serial Transfer Cable For Devices
Stereo 3.5 mm Jack.
to DB9-F Serial Port.
Primarily used to transfer Serial Data back and forth from Small devices.
TRS_Male_Connector
DB9_Female_Connector
Use included Null M-F adapter to Reverse Pins 2 and 3.
Wiring Schematic
DB9           TRS Connector 3.5mm (With Null Adapter)
Pin 1-6-7-8
Pin 2         Ring - Right
Pin 3         Tip  - Left
Pin 4
Pin 5         Sleeve - Shield - Ground
Pin 9
Shell         Sleeve - Shield - Ground
Part # 87070
$6.85
Quantity
30 In Stock

QTY DISCOUNT PRICING
1-910-99100-999
$6.85$6.75$6.65
UPC:820799870703
This Serial Cable DB9F to 3.5mm DCS4 TAKE CONTROL 4 Null Adapter Kit is a must-have for anyone with a new laptop. It allows me to connect to high-speed devices without any issues.
