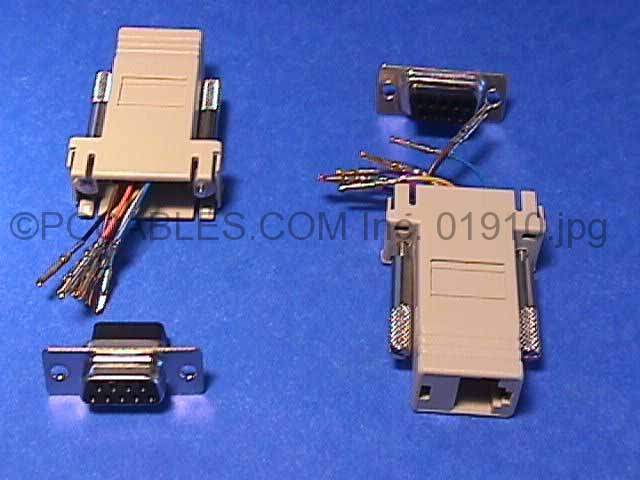

RJ45 to DB9-Female Modular Adapter
Used to connect DB9 Type Device to RJ45 Connector. Used a lot for Serial Devices, Cisco Consoles, Telecom Equipment.
This is the assemble type with all wires ready to be pushed into the appropriate spot on the DB9 Female Connector.
Color Code
RJ-45 Side. Pin Color 1 Blue 2 Orange 3 Black 4 Red 5 Green 6 Yellow 7 Brown 8 White
