Description

SVHS SVIDEO ADAPTER 4PIN MINI DIN F-F

Part No70710
StockIN STOCK
Price 1-9 $3.00
Price 10-99 $2.50
Price 100+ $2.25
Quantity
UPC Code820799707108

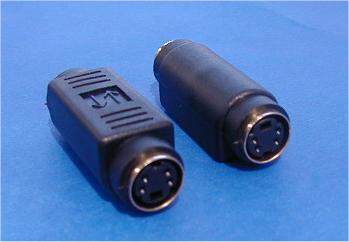

SVHS SVIDEO ADAPTER 4PIN MINI DIN F-F
SVIDEO Mini Din4 Female to Mini Din4 Female Coupler.
Used to Connector two Svideo Cables.
Svideo Wiring
4 PIN MINI-DIN FEMALE at the peripheral.

Pin    Name            Description
 1     GND             Ground (Y)
 2     GND             Ground (C)
 3     Y               Intensity (Luminance)
 4     C               Color (Chrominance)
